Настройка сервера символов в отладчике

Debug symbols allow you to have better debugging sessions. They have information about the functions contained in executables and dynamic libraries and provide you with information to get clean call stacks. A Symbol Server allows the debugger to load the correct symbols, binaries and sources automatically without forcing users to download large debugging files. The server functions like Microsoft's symbol server so the documentation there can be useful.

Note that because released Electron builds are heavily optimized, debugging is not always easy. The debugger will not be able to show you the content of all variables and the execution path can seem strange because of inlining, tail calls, and other compiler optimizations. The only workaround is to build an unoptimized local build.

The official symbol server URL for Electron is https://symbols.electronjs.org. You cannot visit this URL directly, you must add it to the symbol path of your debugging tool. In the examples below, a local cache directory is used to avoid repeatedly fetching the PDB from the server. Replace c:\code\symbols with an appropriate cache directory on your machine.

Использование сервера символов в Windbg

The Windbg symbol path is configured with a string value delimited with asterisk characters. To use only the Electron symbol server, add the following entry to your symbol path (Note: you can replace c:\code\symbols with any writable directory on your computer, if you'd prefer a different location for downloaded symbols):

SRV*c:\code\symbols\*https://symbols.electronjs.org

Set this string as _NT_SYMBOL_PATH in the environment, using the Windbg menus, or by typing the .sympath command. If you would like to get symbols from Microsoft's symbol server as well, you should list that first:

SRV*c:\code\symbols\*https://msdl.microsoft.com/download/symbols;SRV*c:\code\symbols\*https://symbols.electronjs.org

Использование сервера символов в Visual Studio

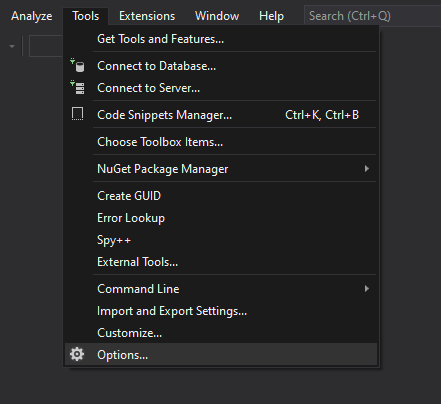

Tools -> Options

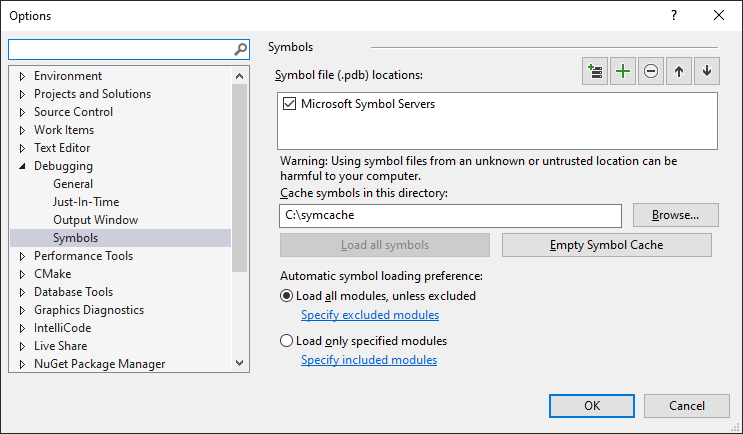

Symbols Settings

Устранение неполадок: символы не загружаются

Type the following commands in Windbg to print why symbols are not loading:

> !sym noisy
> .reload /f electron.exe
