原生文件拖 & 放
概览
作为桌面程序,当然希望 能够实现操作系统的 drag & drop 功能。 很多网站已经支持拖拽文件, Electron 当然也支持
要在您的应用中实现此功能,您需要调用 webContent.startDrag(item)
API 响应 ondragstart
事件。
示例
一个演示如何动态创建要从窗口中拖出的文件的示例。
Preload.js
在 preload.js
中使用 contextBridge
注入方法 window.electron.startDrag(...)
将向主进程发送IPC消息。
const { contextBridge, ipcRenderer } = require('electron')
const path = require('node:path')
contextBridge.exposeInMainWorld('electron', {
startDrag: (fileName) => {
ipcRenderer.send('ondragstart', path.join(process.cwd(), fileName))
}
})
Index.html
添加一个可拖动元素到 index.html
, 并引用你的渲染器脚本:
<div style="border:2px solid black;border-radius:3px;padding:5px;display:inline-block" draggable="true" id="drag">拖动我</div>
<script src="renderer.js"></script>
Renderer.js
在 renderer.js
通过调用通过上述 contextBridge
添加的方法来设置渲染器进程处理拖动事件。
document.getElementById('drag').ondragstart = (event) => {
event.preventDefault()
window.electron.startDrag('drag-and-drop.md')
}
Main.js
在主进程中(main.js
文件),将收到的事件带上文件路径和图标扩展到正在拖动的文件:
- main.js
- preload.js
- index.html
- renderer.js
const { app, BrowserWindow, ipcMain } = require('electron/main')
const path = require('node:path')
const fs = require('node:fs')
const https = require('node:https')
function createWindow () {
const win = new BrowserWindow({
width: 800,
height: 600,
webPreferences: {
preload: path.join(__dirname, 'preload.js')
}
})
win.loadFile('index.html')
}
const iconName = path.join(__dirname, 'iconForDragAndDrop.png')
const icon = fs.createWriteStream(iconName)
// Create a new file to copy - you can also copy existing files.
fs.writeFileSync(path.join(__dirname, 'drag-and-drop-1.md'), '# First file to test drag and drop')
fs.writeFileSync(path.join(__dirname, 'drag-and-drop-2.md'), '# Second file to test drag and drop')
https.get('https://img.icons8.com/ios/452/drag-and-drop.png', (response) => {
response.pipe(icon)
})
app.whenReady().then(createWindow)
ipcMain.on('ondragstart', (event, filePath) => {
event.sender.startDrag({
file: path.join(__dirname, filePath),
icon: iconName
})
})
app.on('window-all-closed', () => {
if (process.platform !== 'darwin') {
app.quit()
}
})
app.on('activate', () => {
if (BrowserWindow.getAllWindows().length === 0) {
createWindow()
}
})
const { contextBridge, ipcRenderer } = require('electron/renderer')
contextBridge.exposeInMainWorld('electron', {
startDrag: (fileName) => ipcRenderer.send('ondragstart', fileName)
})
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Hello World!</title>
<meta http-equiv="Content-Security-Policy" content="script-src 'self' 'unsafe-inline';" />
</head>
<body>
<h1>Hello World!</h1>
<p>Drag the boxes below to somewhere in your OS (Finder/Explorer, Desktop, etc.) to copy an example markdown file.</p>
<div style="border:2px solid black;border-radius:3px;padding:5px;display:inline-block" draggable="true" id="drag1">Drag me - File 1</div>
<div style="border:2px solid black;border-radius:3px;padding:5px;display:inline-block" draggable="true" id="drag2">Drag me - File 2</div>
<script src="renderer.js"></script>
</body>
</html>
document.getElementById('drag1').ondragstart = (event) => {
event.preventDefault()
window.electron.startDrag('drag-and-drop-1.md')
}
document.getElementById('drag2').ondragstart = (event) => {
event.preventDefault()
window.electron.startDrag('drag-and-drop-2.md')
}

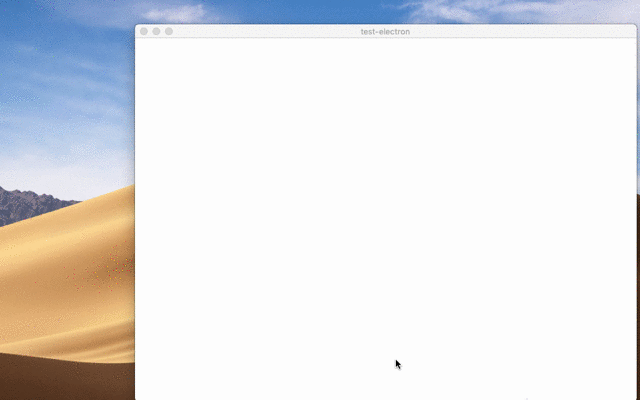

启动 Electron 应用程序后,尝试将该项从 BrowserWindow 拖放到桌面上。 在本指南中,本项是位于项目根目录下的 Markdown 文件:
