Modèle de processus

Electron hérite de son architecture multi-processus de Chromium, ce qui rend le framework architecturalement très similaire à un navigateur web moderne. This guide will expand on the concepts applied in the Tutorial.

Why not a single process?

Web browsers are incredibly complicated applications. Aside from their primary ability to display web content, they have many secondary responsibilities, such as managing multiple windows (or tabs) and loading third-party extensions.

Dans les jours précédents, les navigateurs ont généralement utilisé un processus unique pour toutes ces fonctionnalités . Bien que ce modèle signifiait moins de frais pour chaque onglet, vous aviez ouverts, cela signifiait également qu'un site Web plantait ou suspendait affecterait l'ensemble du navigateur.

Le modèle multi-processus

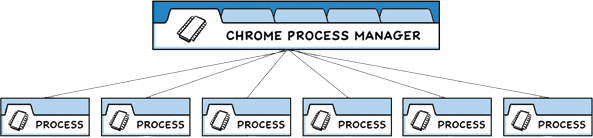

Pour résoudre ce problème, l'équipe de Chrome a décidé que chaque onglet serait rendu dans son propre processus , limiter les dommages que le code bogué ou malveillant sur une page web pourrait causer à l'application dans son ensemble. Un seul processus de navigateur contrôle ensuite ces processus, ainsi que que le cycle de vie de l'application dans son ensemble. Ce diagramme ci-dessous de la Bd Chrome visualise ce modèle :

Chrome's multi-process architecture

Electron applications are structured very similarly. As an app developer, you control two types of processes: main and renderer. These are analogous to Chrome's own browser and renderer processes outlined above.

The main process

Each Electron app has a single main process, which acts as the application's entry point. The main process runs in a Node.js environment, meaning it has the ability to require modules and use all of Node.js APIs.

Window management

The main process' primary purpose is to create and manage application windows with the BrowserWindow module.

Each instance of the BrowserWindow class creates an application window that loads a web page in a separate renderer process. You can interact with this web content from the main process using the window's webContents object.

const { BrowserWindow } = require('electron')

const win = new BrowserWindow({ width: 800, height: 1500 })

const contents = win.webContents

Note: A renderer process is also created for web embeds such as the BrowserView module. The webContents object is also accessible for embedded web content.

Because the BrowserWindow module is an EventEmitter, you can also add handlers for various user events (for example, minimizing or maximizing your window).

When a BrowserWindow instance is destroyed, its corresponding renderer process gets terminated as well.

Application lifecycle

The main process also controls your application's lifecycle through Electron's app module. This module provides a large set of events and methods that you can use to add custom application behaviour (for instance, programatically quitting your application, modifying the application dock, or showing an About panel).

As a practical example, the app shown in the quick start guide uses app APIs to create a more native application window experience.

// quitting the app when no windows are open on non-macOS platforms
app.on('window-all-closed', () => {
if (process.platform !== 'darwin') app.quit()

Native APIs

To extend Electron's features beyond being a Chromium wrapper for web contents, the main process also adds custom APIs to interact with the user's operating system. Electron exposes various modules that control native desktop functionality, such as menus, dialogs, and tray icons.

For a full list of Electron's main process modules, check out our API documentation.

The renderer process

Each Electron app spawns a separate renderer process for each open BrowserWindow (and each web embed). As its name implies, a renderer is responsible for rendering web content. For all intents and purposes, code ran in renderer processes should behave according to web standards (insofar as Chromium does, at least).

Therefore, all user interfaces and app functionality within a single browser window should be written with the same tools and paradigms that you use on the web.

Although explaining every web spec is out of scope for this guide, the bare minimum to understand is:

  • An HTML file is your entry point for the renderer process.
  • UI styling is added through Cascading Style Sheets (CSS).
  • Executable JavaScript code can be added through <script> elements.

Moreover, this also means that the renderer has no direct access to require or other Node.js APIs. In order to directly include NPM modules in the renderer, you must use the same bundler toolchains (for example, webpack or parcel) that you use on the web.


Renderer processes can be spawned with a full Node.js environment for ease of development. Historically, this used to be the default, but this feature was disabled for security reasons.

At this point, you might be wondering how your renderer process user interfaces can interact with Node.js and Electron's native desktop functionality if these features are only accessible from the main process. In fact, there is no direct way to import Electron's content scripts.

Scripts de preload

Les scripts de preload contiennent du code qui s'exécute dans un processus de rendu (renderer process) avant que son contenu web ne se charge. Ces scripts s’exécutent dans le contexte du moteur de rendu, mais ont des privilèges supplémentaires qui leur donnent accès aux API Node.js.

A preload script can be attached to the main process in the BrowserWindow constructor's webPreferences option.

const { BrowserWindow } = require('electron')
const win = new BrowserWindow({
webPreferences: {
preload: 'path/to/preload.js',

Because the preload script shares a global Window interface with the renderers and can access Node.js APIs, it serves to enhance your renderer by exposing arbitrary APIs in the window global that your web contents can then consume.

Although preload scripts share a window global with the renderer they're attached to, you cannot directly attach any variables from the preload script to window because of the contextIsolation default.

window.myAPI = {
desktop: true,
// => undefined

Context Isolation means that preload scripts are isolated from the renderer's main world to avoid leaking any privileged APIs into your web content's code.

Instead, use the contextBridge module to accomplish this securely:

const { contextBridge } = require('electron')

contextBridge.exposeInMainWorld('myAPI', {
desktop: true,
// => { desktop: true }

Cette fonctionnalité est incroyablement utile pour deux objectifs principaux :

  • By exposing ipcRenderer helpers to the renderer, you can use inter-process communication (IPC) to trigger main process tasks from the renderer (and vice-versa).
  • If you're developing an Electron wrapper for an existing web app hosted on a remote URL, you can add custom properties onto the renderer's window global that can be used for desktop-only logic on the web client's side.
