Custom Window Styles
Frameless windows
A frameless window removes all chrome applied by the OS, including window controls.
To create a frameless window, set the BaseWindowContructorOptions frame
param in the BrowserWindow
constructor to false
.
docs/fiddles/features/window-customization/custom-window-styles/frameless-windows (33.2.1)Open in Fiddle
- main.js
const { app, BrowserWindow } = require('electron')
function createWindow () {
const win = new BrowserWindow({
width: 300,
height: 200,
frame: false
})
win.loadURL('https://example.com')
}
app.whenReady().then(() => {
createWindow()
})
Transparent windows
To create a fully transparent window, set the BaseWindowContructorOptions transparent
param in the BrowserWindow
constructor to true
.

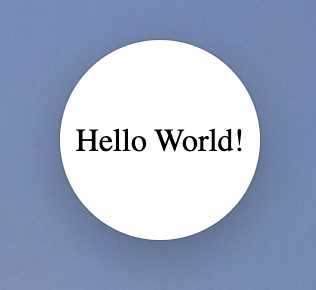

The following fiddle takes advantage of a tranparent window and CSS styling to create the illusion of a circular window.
docs/fiddles/features/window-customization/custom-window-styles/transparent-windows (33.2.1)Open in Fiddle
- main.js
- index.html
- styles.css
const { app, BrowserWindow } = require('electron')
function createWindow () {
const win = new BrowserWindow({
width: 100,
height: 100,
resizable: false,
frame: false,
transparent: true
})
win.loadFile('index.html')
}
app.whenReady().then(() => {
createWindow()
})
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<!-- https://developer.mozilla.org/en-US/docs/Web/HTTP/CSP -->
<meta http-equiv="Content-Security-Policy" content="default-src 'self'; script-src 'self'; style-src 'self' 'unsafe-inline'">
<link href="./styles.css" rel="stylesheet">
<title>Transparent Hello World</title>
</head>
<body>
<div class="white-circle">
<div>Hello World!</div>
</div>
</body>
</html>
body {
margin: 0;
padding: 0;
background-color: rgba(0, 0, 0, 0); /* Transparent background */
}
.white-circle {
width: 100px;
height: 100px;
background-color: white;
border-radius: 50%;
display: flex;
align-items: center;
justify-content: center;
app-region: drag;
user-select: none;
}
Limitations
- You cannot click through the transparent area. See #1335 for details.
- Transparent windows are not resizable. Setting
resizable
totrue
may make a transparent window stop working on some platforms. - The CSS
blur()
filter only applies to the window's web contents, so there is no way to apply blur effect to the content below the window (i.e. other applications open on the user's system). - The window will not be transparent when DevTools is opened.
- On Windows:
- Transparent windows will not work when DWM is disabled.
- Transparent windows can not be maximized using the Windows system menu or by double clicking the title bar. The reasoning behind this can be seen on PR #28207.
- On macOS:
- The native window shadow will not be shown on a transparent window.
